If your thinking of converting to A Category 0 hitch for your Cub Cadet Garden Tractor, you have come to the right place. We have them for the 82 Series and up, the Quielines, and even the Narrow frames.
A category 0 three point is a much better hitch than a sleeve hitch lift kit due to its lifting power and stabalization. A 3 point has a better pulling capacity due to the fact that it has 2 drag arms along the ground to pull with. Stabilization is better and leveling of equipment is much easier and infinate results can be achieved.
We have 2 styles of 3 points. We make a reproduction of the Original style OEM kit. This kit has some internal mods like bushings, thicker steel, more draft pin holes and other improvements - but looks very close to stock. We took that kit and made a Modified version of it. This is what we call the "Modified" kit. The modified kit has all the great improvements that the OEM has, plus it has extra holes on the lift arms for more adjustability. This makes it a much more sought after kit versus the OEM.
We make 3 points for 4 series of tractors. The 82 Series Regular Garden Tractors (GT), the 82 Series Super Garden Tractor (SGT), the Quietlines (QL), and the Narrow Frames (NF). We do not make any for the 70/100 series, or the Originals. They will be coming some day. None of our 3 point kits will work on tractors that have rear PTO.
All the kits listed below work off the same principal. The deck lift cylinder does the work. So the 3 point lift arm connects into the deck lift system. When the deck goes up, the 3 point goes up. Some tractors have the cam on the side of the tractor that allows you to lock your deck up. The 3 point will lift seperately due to its floating capabilities.
Its been asked what makes this kit so special versus the kits that were originally made for these grarden tractors. Some major improvements were made to this kit:
1. The holes in the lift arms are moved in 1", stock position (middle hole) and outward 1". This gives you the following lifting configurations.
Inner hole - More lifting capacity, less lift height, more control - 1.75" less travel than stock, 35% more lifting power.
Stock hole - same power and speed as stock - base line lifting capacity.
Outer hole - Less lifting capacity, More lifting height, Less control - 2" more travel than stock.
2. Bottom add on tabs to the rear axle tubes have been incorporated in.
3. Extra drag arm pin holes added for more customization.
4. Hydraulic port holes moved over closer to the frame so that the lines can run right next to the frame the whole length of the tractor.
$468.00 / Kit, CC-03-001M for the Regular Garden Tractors
$474.00 / Kit, CC-03-101M for the Super Garden Tractors without Factory PTO

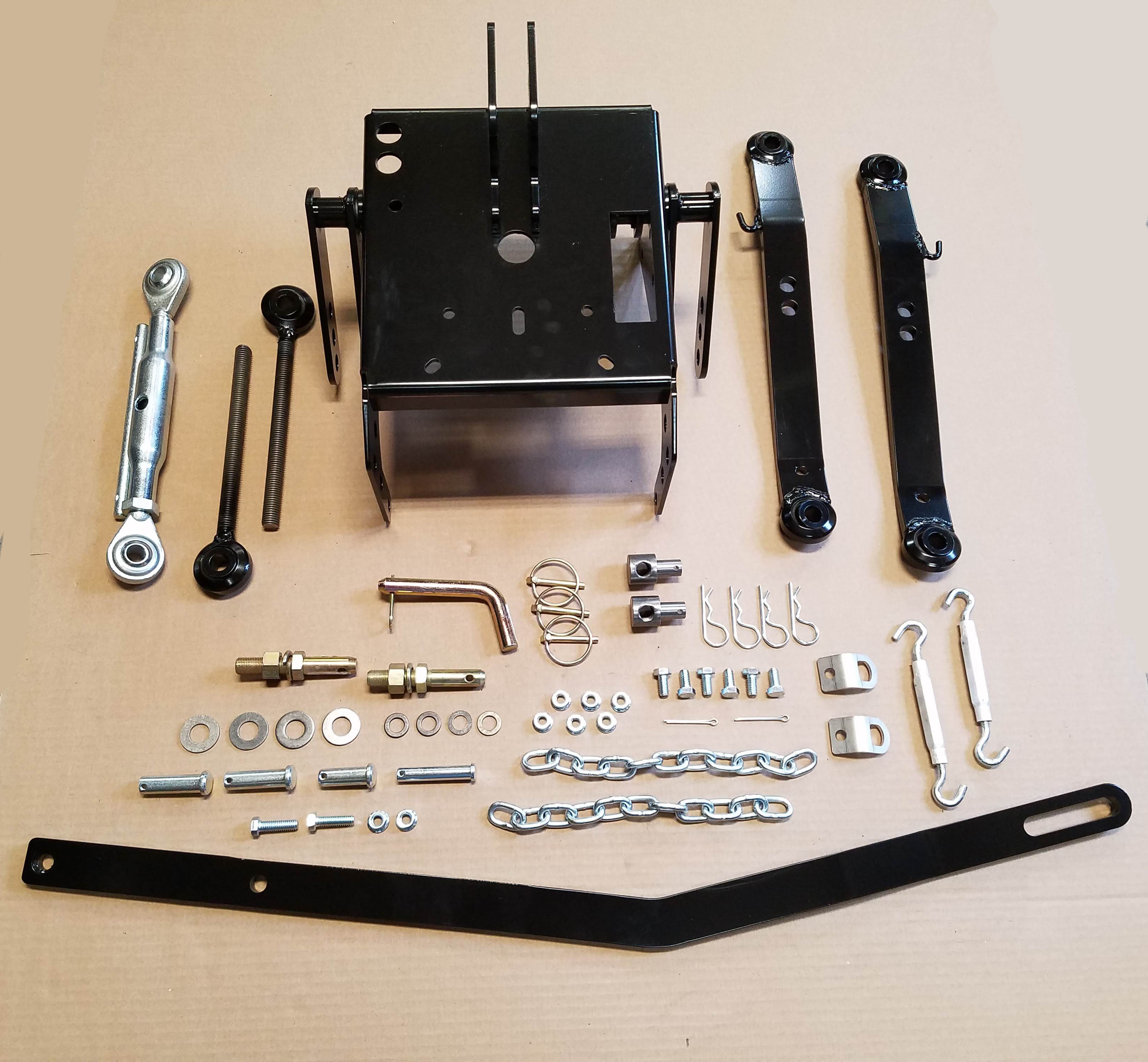

This is our Modified Reproduction Category 0 - 3 Point lift system based on the OEM system that Cub Cadet made. It will fit the regular and super garden tractors that do not have factory PTO in the rear. The kit is designed to work off of the single deck lift system. Complete kit. Retrofit to fit more tractors than the original 190-389 or 190-389-100 kit by Cub Cadet. Will not work on tractors with factory rear PTO. Receiver hitch sold seperately. Ref Part# CC-07-003. Rear hydraulics split kit sold separately. Ref Part# CC-100-001
$489.00 / Kit, CC-03-001 for the Regular Garden Tractors
$496.00 / Kit, CC-03-101 for the Super Garden Tractors without Factory PTO
This is our reproduction of the original 3 point plate that was made by Cub Cadet. It have the same geometry and configuration as the original, but the upper bracket is welded on instead of bolted on. We did upgrade this plate to use bushings so that it lasts longer. Same kit as the 190-389 or 190-389-100.
$469.00 / Kit, CC-03-013 for the Quietline Tractors
Category 0 - 3 Point lift system for Cub Cadet Quietline Tractors. The kit is designed to work off of the single deck lift system. Complete kit. Similiar to the original 190-389 or 190-389-100 kit by Cub Cadet. This kit was never offered by Cub Cadet - an XMW Exclusive. Will not work on tractors with PTO. This kit is for your wide frame tractors - 1250, 1450, 1650. Will fit the 1x9 tractors also - like the 129, 149, 169. Part is raw steel, UNPAINTED

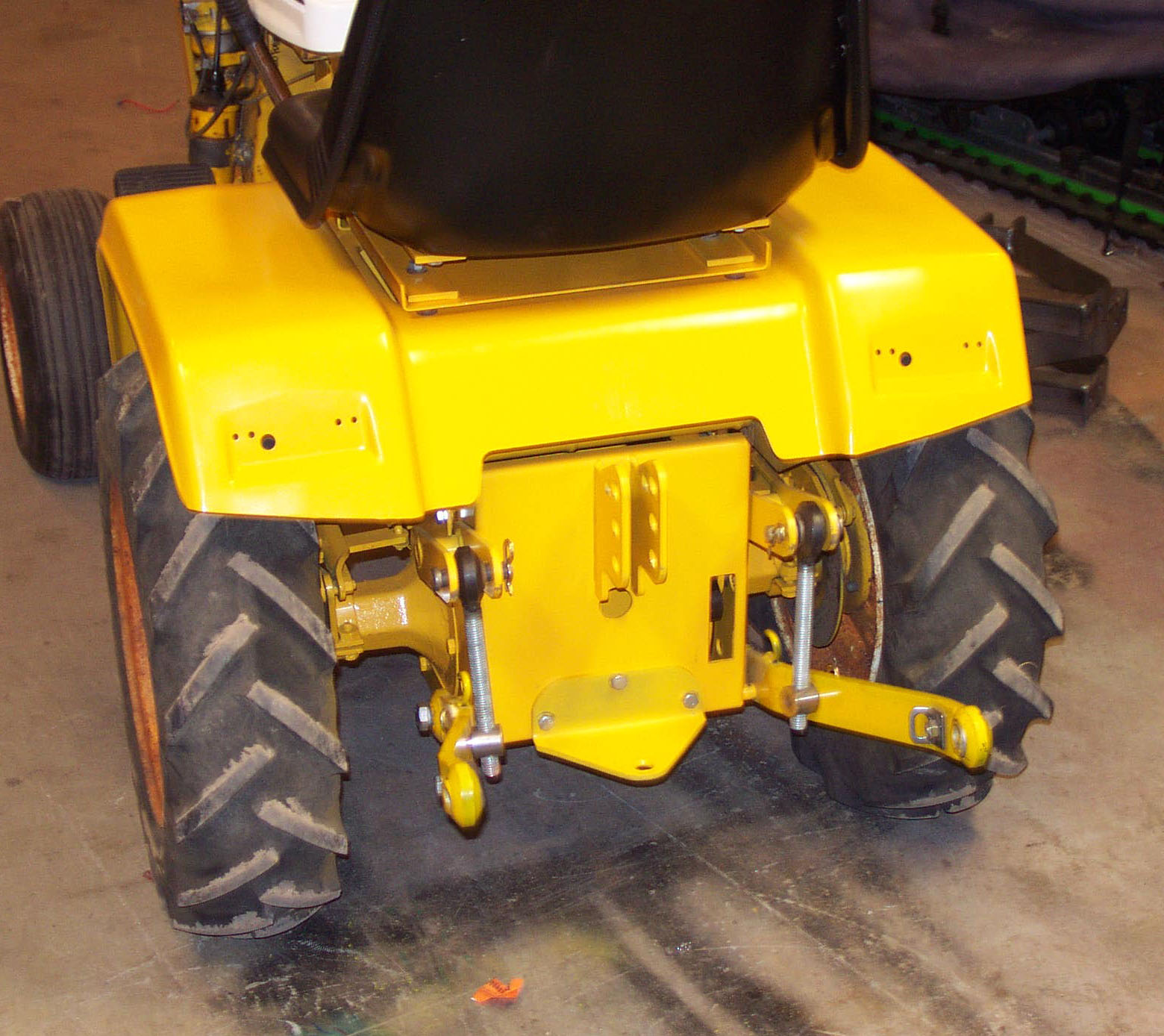

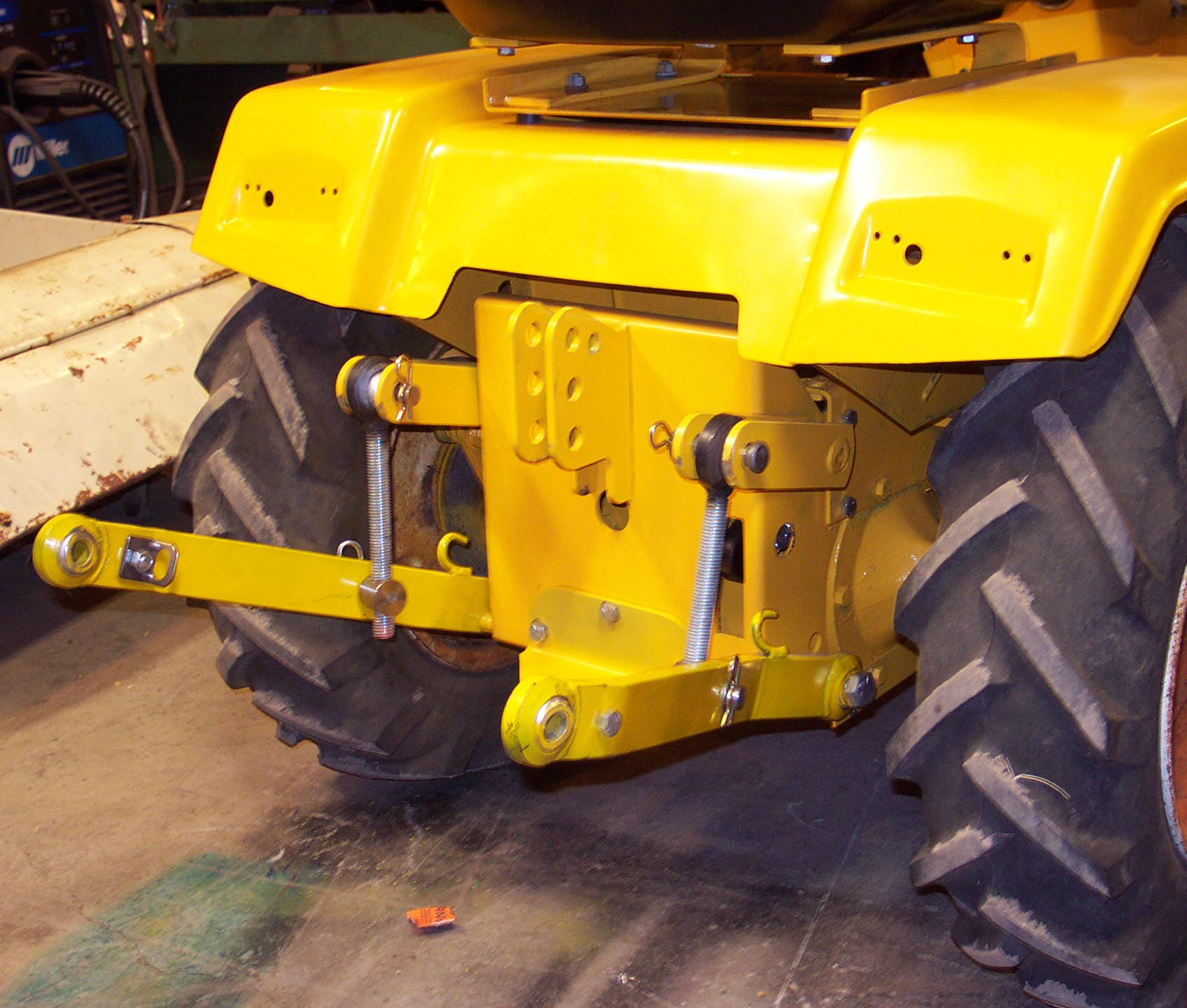

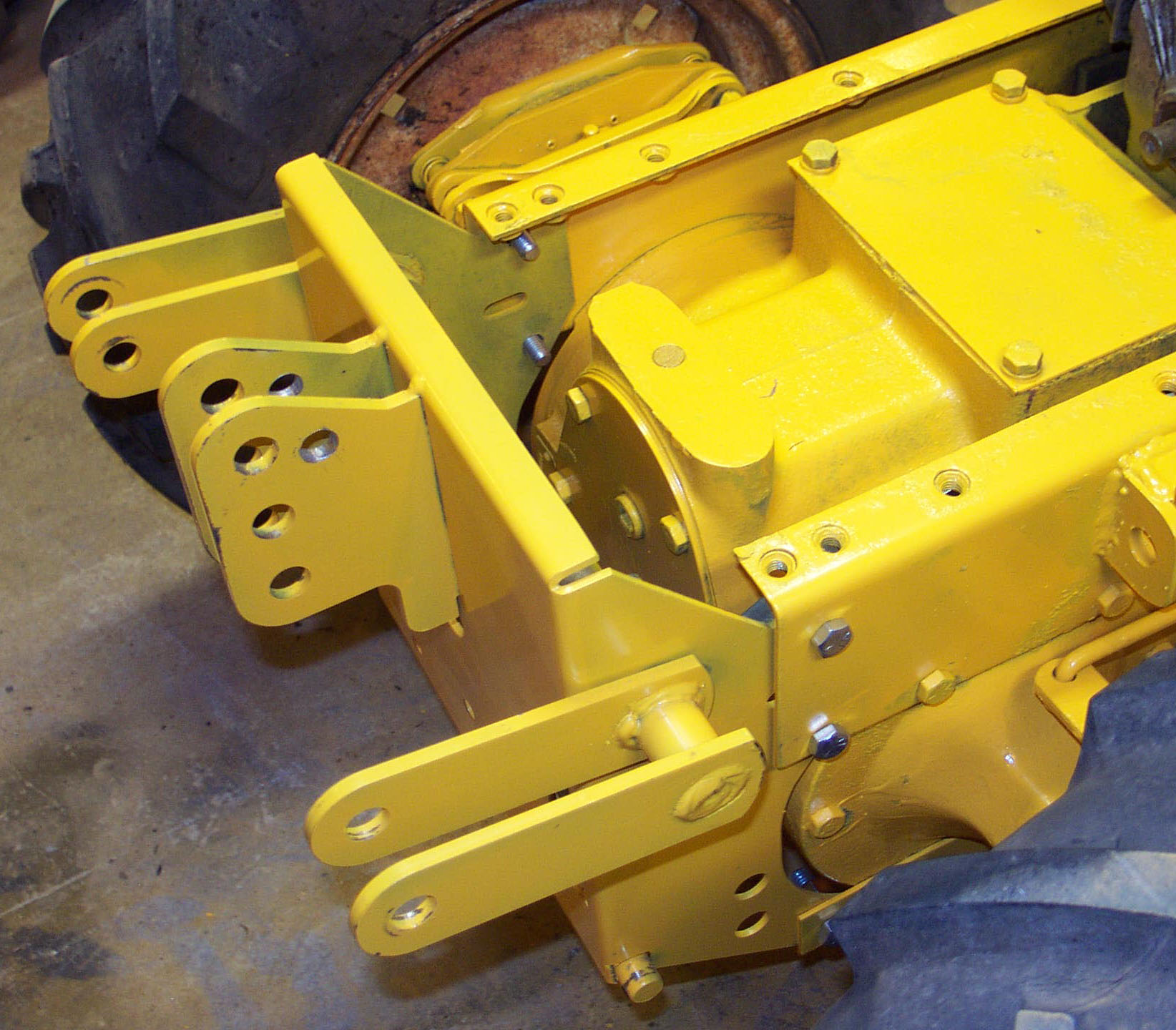

$469.00 / Kit, CC-03-200 for the Narrow Frame Tractors
Category 0 - 3 Point lift system for Cub Cadet Narrow Frame Tractors. The kit is designed to work off of the single deck lift system. The lift rod bolts into the lift handle inside the frame. Some drilling required. Complete kit. Similiar to the original 190-389 or 190-389-100 kit by Cub Cadet. This kit was never offered by Cub Cadet - an XMW Exclusive. Will not work on tractors with PTO. New Category 0 - 3 Point lift system. Complete kit. Never produced before!!! Will not work on tractors with PTO. Designed to be similar to the 82 series kits. Will fit the following tractors without PTO: 107, 127, 147. May fit other narrow frames with some small modifications to the lift shaft. Parts are all raw steel, UNPAINTED. Buyer must make sure this will fit his tractor before ordering. Bolt on hitch sold seperately.
