Reproduction Haban 54" push blade cutting edge. It is made out of AR400. AR stands for "Abrasion Resistant" and 400 is the class. 400 is really good! We also increased the thickness to .250" (1/4") of an inch.

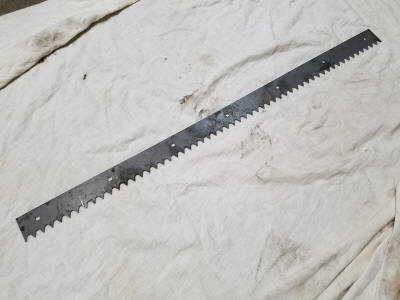

A dual edged push blade. One side has serrated teeth and the other has the smooth edge like the OEM blade. It is made out of AR400. AR stands for "Abrasion Resistant" and 400 is the class. 400 is really good! We also increased the thickness to .250" (1/4") of an inch - not like the OEM .134" blades. The straight edge is the same height from the middle of the holes to the edge as the OEM. The serrated edge, the teeth are added to the OEM edge making them stick down for a little more chewing power.

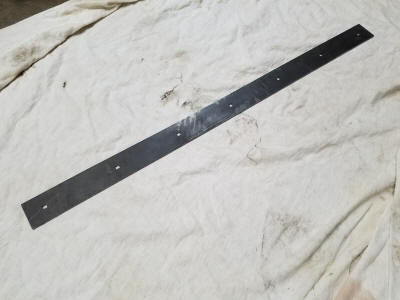

We made a blade for the 42" push blades and made it a little bit taller. It is made out of AR400. AR stands for "Abrasion Resistant" and 400 is the class. 400 is really good! We also increased the thickness to .179" (3/16") of an inch - not like the OEM .134" blades. This blade is 2 1/2" tall.
We offer 2 different materials - AR Steel and Stainless Steel and Thicker (.179") than OEM to suite your needs. Laser cut to Original OEM Specs. Unpainted. Similar to Cub Cadet # IH-464371-R2 USE 703-0658
Implement lift rod. For lifting push blades, snowblowers, etc. 1/2" dia. cold rolled steel with 1/8" holes on each end for clip. UNPAINTED.
Adjustable lift rod provides 2.5" of travel on the adjuster nut end. The rod can be adjusted + / - 2.5" from the standard length above. Adjustable end has dual locking nuts. Threaded shaft end is stainless steel with a stainless steel long nut so you do not have to paint the threads or worry about corrosion. Sold Upainted.
$17.00 / ea, PN# CC-96-073

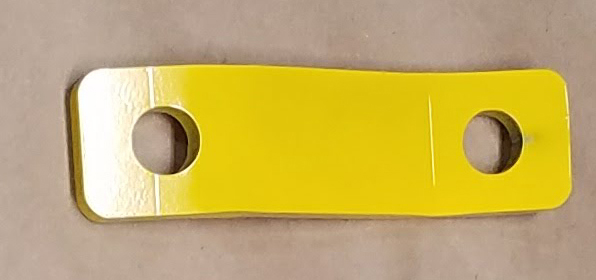

Used on Cyclops Push Blades to take some of the stress off the lift system.
$38.00 / pair, PN# CC-51-001
Replacement for push blades. Made out of 1/4" steel on the shoe. Complete with hardware. UNPAINTED Similar to Cub Cadet # IH-466906-R11 USE 703-0650
$63.00 / pair, PN# CC-25-025
Replacement skid shoes for Haban push blades. Made out of 1/4" T1 steel. Fits 401 54 inch Haban front Snow Blade 190-401-100. UNPAINTED PN/ HA-12356
$135.00 / ea, PN# CC-86-002

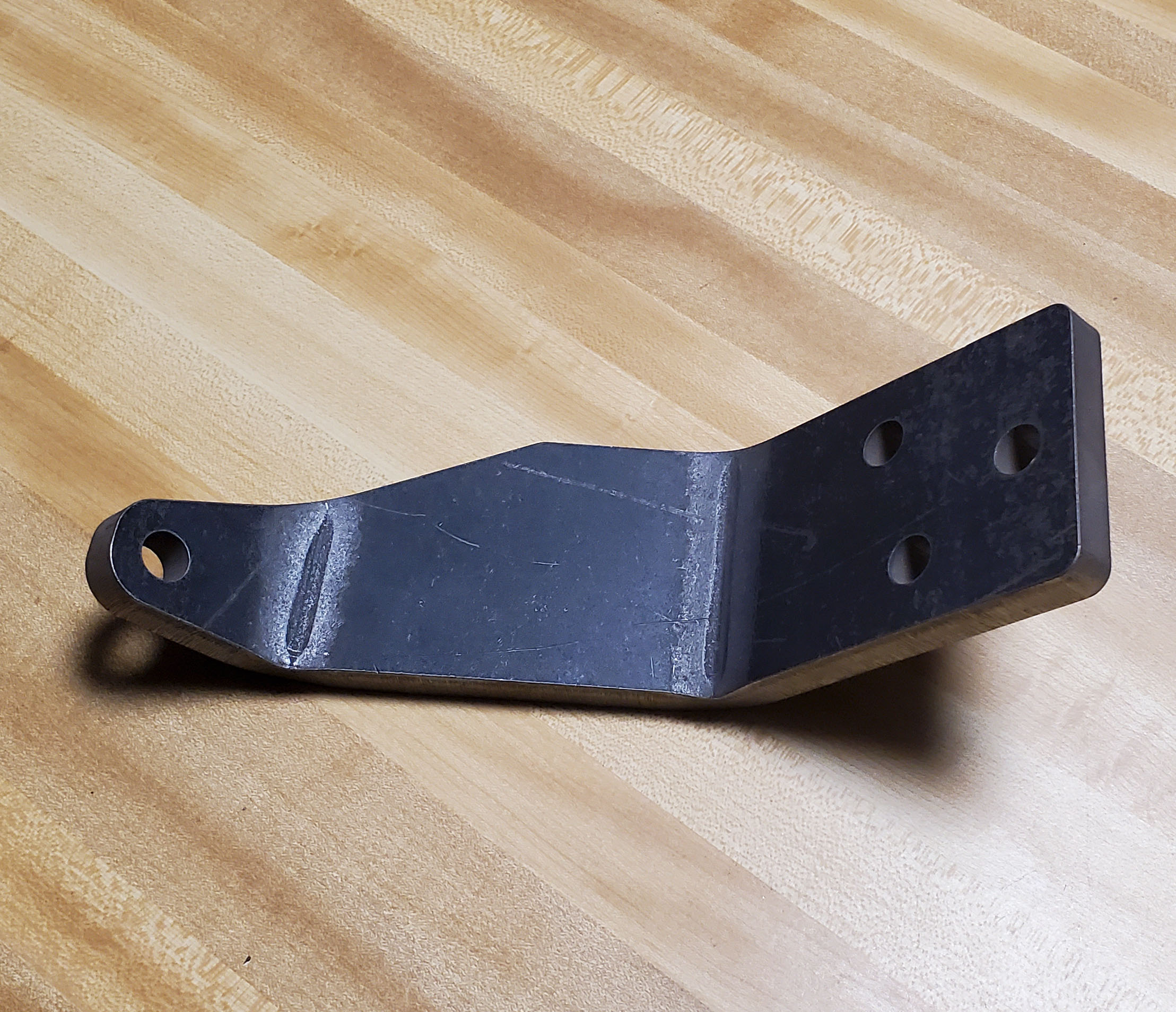

This is a combination lift and push bracket for the Cyclops snow blowers and push blades. Dimensionally same shape as the originals, but made out of grade 50 steel and machined and welded instead of the cast iron original ones. Stainless Steel hardware. Used for the lifting of front attachments, snowblowers 450, 451, 551 etc and push blades. Fits the following Models: 1440 1641 1861 1862 1863 1864 1782 2082 2084 2086 2182 2284 and others that use the 719-3097 bracket.
$42.00 / pair, PN# CC-25-011
These are the newer style mounting brackets for the Haban blades used on the 1991 and later Cyclops tractors - Kit# 190-401-100. Allows the mounting of the blade without notching the newer style fenders. Sold in Pairs, Unpainted.
$38.00 / pair, PN# CC-25-012
Used on the Haban 54 in. 190-401-100 blade, plus the 374 60 in. mower decks. IH Part Number: HA-14300
$48.00 / ea, PN# CC-96-015
Lift bracket extender bolts to your lift ear on your NF and WF cub cadets. Multi holes allow you to position your lift rod to obtain higher lift amounts. Knee action of the extender allows the blower or blade to float if needed, allowing you to leave your float lock in if needed. Works great in combination with the adjustable lift rods. Will not work on the 82 Series tractors. Unpainted
$26.00 / ea, PN# CC-78-040
Replacement spring for the trip push blades. Also fits spring assists. Same length as OEM. Comes with eye bolt and nut. Similar to Cub Cadet #IH-PO27 USE 959-3380 or 732-3037
$44.00 / ea, PN# CC-69-012
Replacement Lifting Bracket for the Push Blades. Made from 1/2" HR Steel. IH-57217-C1 Unpainted.
