These are premium new dual wheel adaptors for you garden tractor. They will fit Cub Cadet, John Deere, Simplicity, AC, Sears and most garden tractors that use the 12" rim with the 5 bolts on a 4 1/2" diameter bolt circle. These rims were widely used between most lawn and garden tractor manufactures. Have been used on 6 and 8 wheel swamp buggies and trenchers. Not recommended for speeds over 10 MPH, Competition Pulling Use or High Speed Applications. Comes with course studs and plain nuts. Unpainted
Powder Coat Black, $40.00 / set,
Powder Coat Cub White, $40.00 / set,
Powder Coat JD Green, $40.00 / set,
Fine Thread Stud / Nut Upgrade, $38.00 / set,
We have had requests for a larger center dual wheel spacer that will clear over some brands. The larger center is 3" clear inside diameter. These are premium new dual wheel adaptors for you garden tractor. They will fit Cub Cadet, John Deere, Simplicity, AC, Sears and most garden tractors that use the 12" rim with the 5 bolts on a 4 1/2" diameter bolt circle. These rims were widely used between most lawn and garden tractor manufactures. Have been used on 6 and 8 wheel swamp buggies and trenchers. Not recommended for speeds over 10 MPH, Competition Pulling Use or High Speed Applications. Comes with course studs and plain nuts. Unpainted
Powder Coat Black, $40.00 / set,
Powder Coat Cub White, $40.00 / set,
Powder Coat JD Green, $40.00 / set,
Fine Thread Stud / Nut Upgrade, $38.00 / set,
We even make a 4 Bolt Dual Wheel Spacer. These are premium new dual wheel adaptors for you garden tractor. They will fit Cub Cadet, John Deere, Simplicity, AC, Sears and most garden tractors that use the 8" thru 12" rim with the 4 bolts on a 4" (101mm) diameter bolt circle. These rims were widely used between most lawn and garden tractor manufactures. Have been used on 6 and 8 wheel swamp buggies and trenchers. Not recommended for speeds over 10 MPH, Competition Pulling Use or High Speed Applications. Comes with 1/2" fine thread studs and tapered lug nuts. We do not make these with a round tube. The 3 1/2" outer diameter tube does not allow enough room for the studs, so we only use square tube. Sold as a set and come unpainted.
Powder Coat Black, $40.00 / set,
Powder Coat Cub White, $40.00 / set,
Powder Coat JD Green, $40.00 / set,

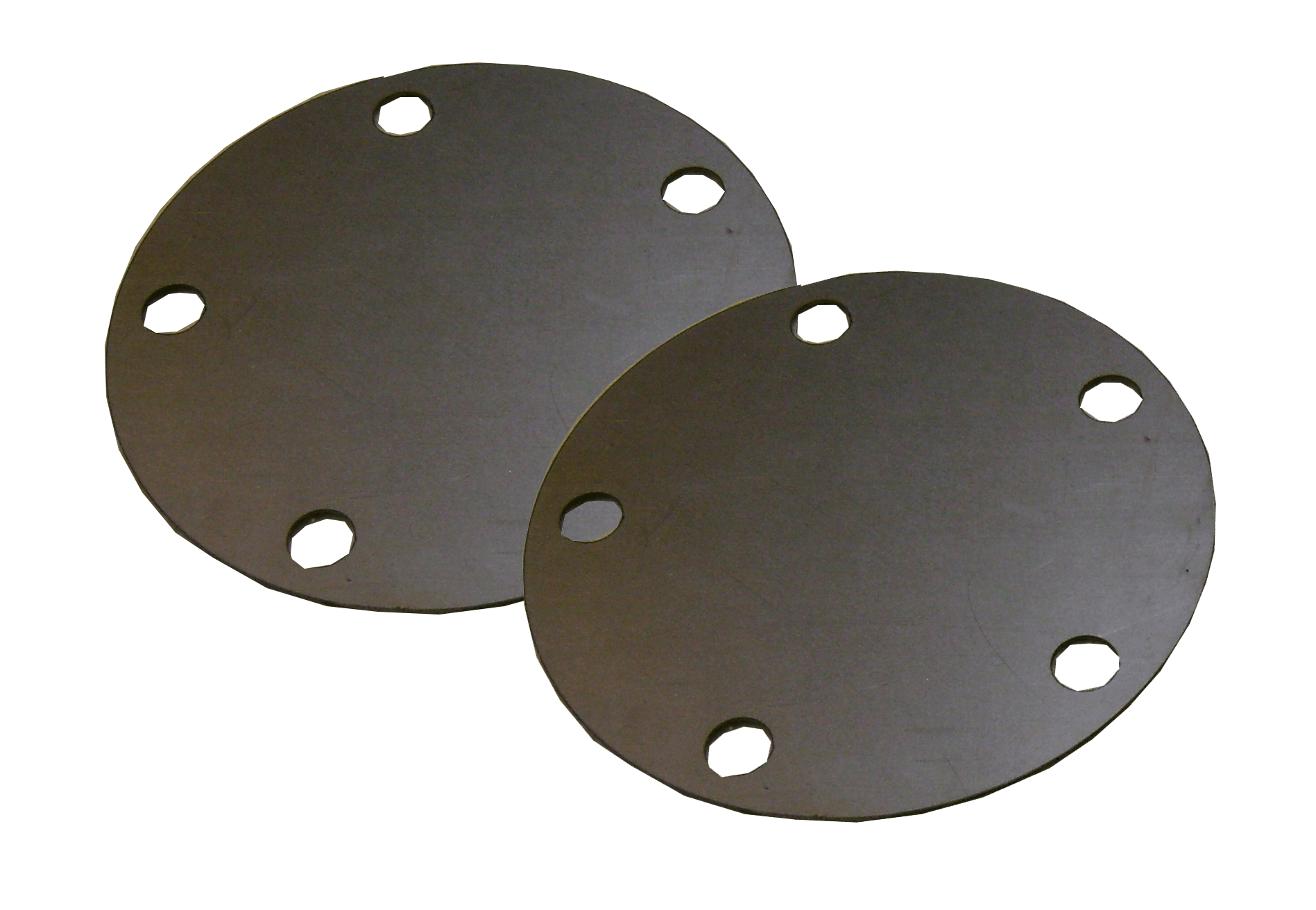

Covers up the end of the Dual Wheel Spacers above. Raw steel - unpainted. Sold in pairs, Unpainted.
$22.00 / pair, PN# CC-01-055 (5 Bolt)
$22.00 / pair, PN# CC-01-054 (4 Bolt)
Powder Coat Black, $20.00 / set,
Powder Coat Cub White, $20.00 / set,
Powder Coat JD Green, $20.00 / set,
$32.00 / pair, PN# CC-01-011
2 - 5/16" Plates - spaces your wheels out 5/16" on each side Made from 5/16" Grade 50 Steel. Unpainted.
These are billet aluminum spacers for moving your tires out 1". They are a 5 bolt on a 4.5" bolt circle to a 5 bolt on a 4.5" bolt circle. The outer studs are 13 mm and you will have to drill your rims out a hair with a 1/2" drill to git the existing rims on if they are the small 7/16" holes. Some rims for some garden tractors are 13 mm already. Come with a pair of cover plates to cover the hole in the middle of your rim. Sold in Pairs, Unpainted.
$145.00 / set, PN# CC-01-046
These are billet aluminum spacers for adapting the larger 5 bolt x 4.75 rims to your garden tractor. They are a 5 bolt on a 4.5" bolt circle (to bolt to your tractor) to a 5 bolt on a 4.75" bolt circle (Like a 15" car bolt pattern). The outer studs are 13 mm. Sold in Pairs, Unpainted.
$47.00 / 10 pcs., PN# CC-01-049
If your running our billet aluminum wheel spacers, and you are running wheel studs, then it is a good idea to use these wheel nuts that are bulged for the best holding power that you can get. Fine Thread. Sold in sets of 10
$60.00 / 10 pcs., PN# CC-01-050
If your running our billet aluminum wheel spacers, then it is a good idea to use these wheel studs that are bulged for the best holding power that you can get. 7/16 FIne Thread. Sold in sets of 10
$82.00 / 10 pcs., PN# CC-01-048
These allow you to bolt your inner rims on, tighten them down, then bolt on your spacer. This will allow you to put your duals on and off easier. Sold in sets of 10
